How to Install UV LEDs for Optimal Efficiency in Your Product Designs?
UV LEDs (Ultraviolet Light Emitting Diodes) are used in a variety of applications, from curing adhesives and coatings to sterilizing surfaces and enabling advanced imaging.
UV LEDs (Ultraviolet Light Emitting Diodes) are used in a variety of applications, from curing adhesives and coatings to sterilizing surfaces and enabling advanced imaging. To get the most out of UV LEDs in your product designs, proper installation and integration are key to maximizing their performance, efficiency, and longevity. Here’s a guide on how to install UV LEDs for optimal efficiency:
1. Understand the Application and UV LED Types
UV LEDs are available in different wavelengths and power ratings, depending on the application. Knowing the right UV LED type and wavelength for your product is critical for efficiency.

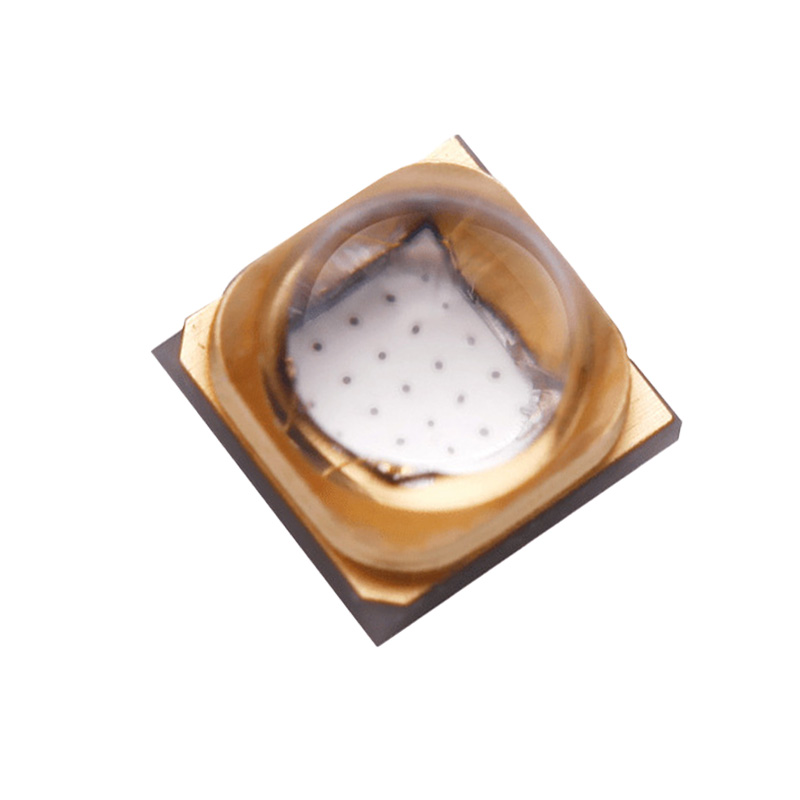

· UV-A (320-400 nm): Commonly used for curing, ink printing, and polymerization. It's also used in fluorescence applications.
· UV-B (280-320 nm): Typically used for sterilization and disinfection.

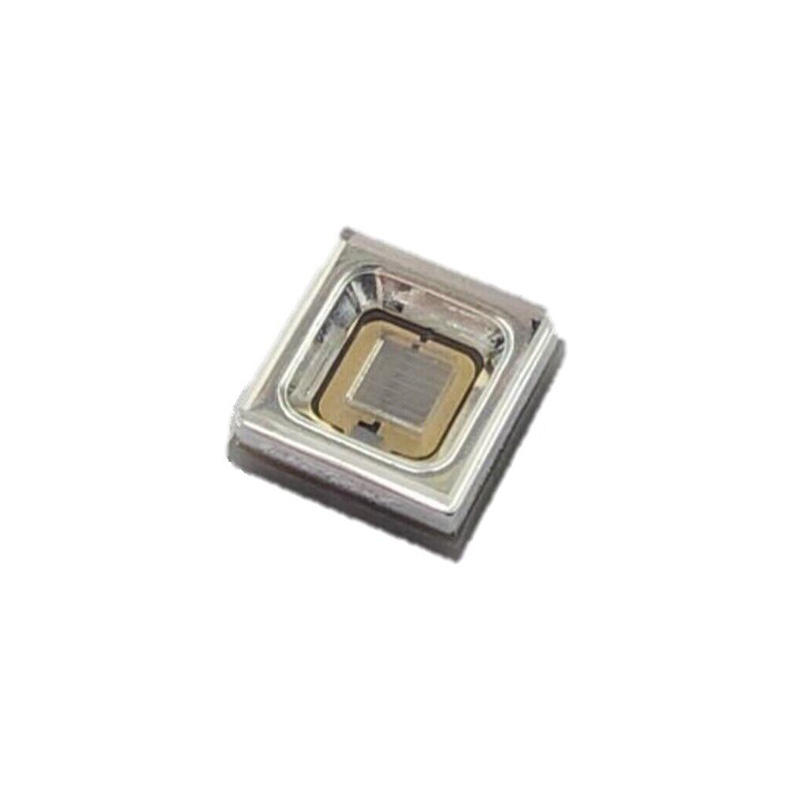

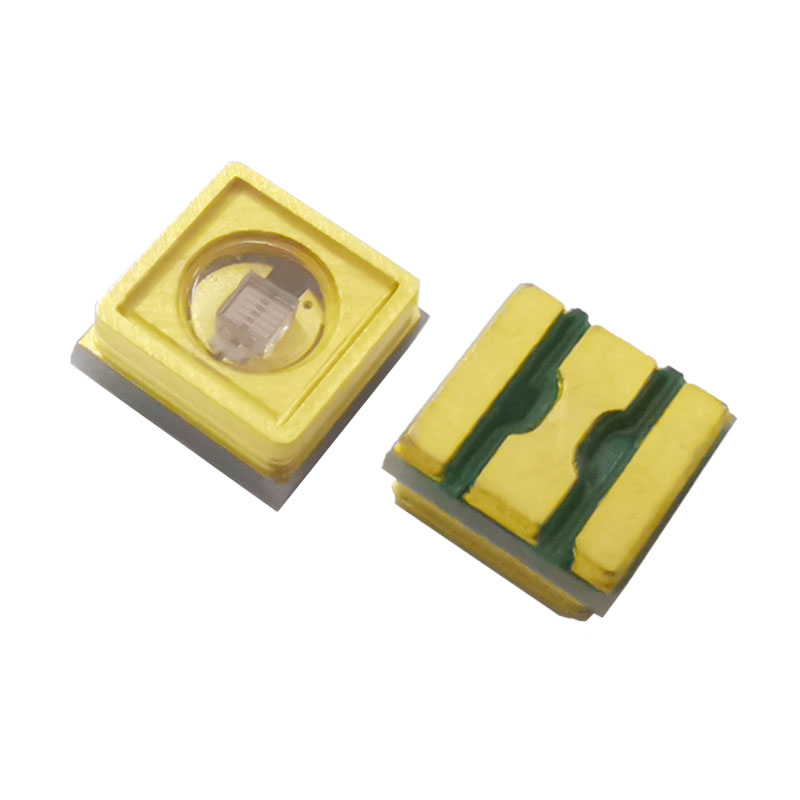

· UV-C (100-280 nm): Highly effective in sterilizing surfaces and air. These are often used in medical or germicidal applications.
Choose LEDs that fit your needs, considering factors like intensity, wavelength, and beam angle.
2. Plan the Power Supply Requirements
UV LEDs require specific power supplies to ensure proper operation. Over-driving or under-driving the LED can reduce its lifespan or performance.
· Current Rating: Check the UV LED’s current rating to ensure the power supply provides the correct voltage and current. Most UV LEDs operate within a constant current range.
· Constant Current Driver: Use a constant current driver that matches the power specifications of your UV LEDs. This will help maintain stable output, improve efficiency, and avoid damaging the LEDs.
· Voltage Considerations: UV LEDs usually operate at low voltages (typically 3-5V), so ensure that the driver you choose is compatible.
3. Proper Heat Management
UV LEDs tend to generate a significant amount of heat during operation, which can reduce their efficiency and lifespan if not managed properly.
· Thermal Design: Incorporate a heat sink or thermal pad to help dissipate heat from the LED. The choice of heat sink material (e.g., aluminum or copper) should be based on thermal conductivity and the size of the LED.

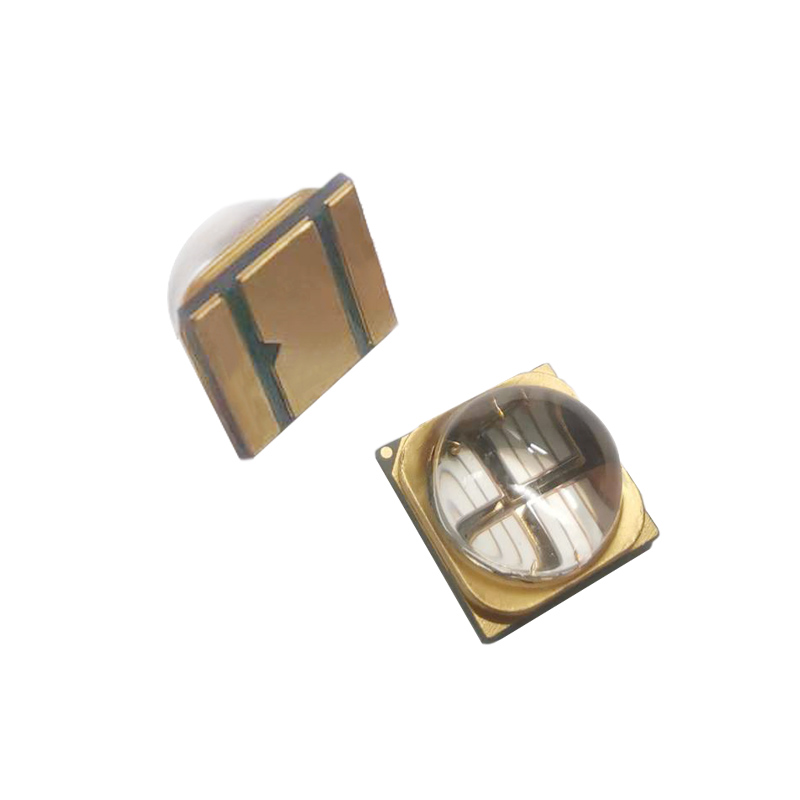

· Active Cooling: For high-power UV LEDs, consider active cooling solutions like fans or liquid cooling systems to prevent overheating.
· Mounting Surface: Mount the LED on a surface that can conduct heat efficiently. This may include a metal chassis or a thermal pad that promotes heat transfer.
4. Optimal LED Positioning and Orientation
The positioning and orientation of UV LEDs in your design play a key role in their efficiency. This is especially important for applications like curing or sterilization, where even distribution of UV light is critical.
· Beam Angle: Ensure the LED is positioned at an optimal angle to provide uniform coverage in the target area. Some UV LEDs have a wide beam angle, while others have a more focused beam. Match the LED’s beam angle to your application needs.
· LED Array Design: If you’re using multiple LEDs, position them to minimize overlap and ensure even distribution. An array of LEDs arranged in a grid or circular pattern is often used for curing or sterilization.
· Distance to Target: The efficiency of UV LEDs decreases with distance, so ensure that the LEDs are placed at an optimal distance from the object being treated. For example, in curing applications, place the LEDs close to the substrate for the most effective result.
5. Consider Optical Elements
For certain applications, you may need to shape or direct the UV light more precisely. This is where optical elements like lenses, reflectors, and diffusers come in.
· Lenses: Use UV-transparent lenses to focus or spread the light depending on the application. A focused lens can increase intensity on a smaller area, while a diffuser lens can create a broader, more uniform light pattern.
· Reflectors: A parabolic reflector can be used to direct the UV light in a particular direction, improving light efficiency.
· Optical Coatings: UV LEDs can be paired with optical coatings to enhance light transmission and reduce losses due to reflection.
6. Ensure Proper Wiring and Electrical Connections
Proper wiring and electrical connections are essential for optimal performance and safety.
· Soldering: Use high-quality soldering techniques to connect the UV LEDs to the driver and PCB. Poor connections can lead to inefficient operation, reduced light output, or even LED failure.
· Wires and Connectors: Choose wires and connectors that can handle the electrical load of the UV LEDs. For high-power LEDs, use thick, insulated wires to minimize voltage drops and overheating.
· Polarity: Double-check the polarity when connecting the UV LEDs to the power supply. Reversed polarity can damage the LED.
7. Incorporate UV Safety Features
UV light can be harmful to both eyes and skin, especially in higher intensities. When designing products with UV LEDs, it’s important to include safety features.
· Protective Enclosures: Use UV-blocking enclosures or glass to prevent direct exposure to UV light. If the product will be used by people, ensure the design has adequate shielding to avoid accidental exposure.
· Safety Sensors: For products that involve high-intensity UV light (e.g., sterilizers), integrate safety sensors that turn off the LEDs if someone is detected too close to the light source.
· Warning Indicators: Add clear warning labels or indicators to inform users about the risks associated with UV exposure.
8. Test and Calibrate the UV LEDs
Once your UV LEDs are installed, perform thorough testing to ensure they are working at optimal efficiency. Calibrate the LEDs based on the intensity required for your application.
· Power Output: Use a radiometer or UV light meter to measure the output of the UV LEDs and ensure they meet the desired intensity.
· Uniformity: For applications like curing, ensure that the light output is uniform across the entire target area. This might require adjusting the positioning of LEDs or optical elements.
· Lifetime Testing: Check the performance of the LEDs over time. Some degradation in light output is normal, but make sure the reduction is within acceptable limits for your application.
9. Consider Environmental Factors
UV LEDs can be sensitive to environmental conditions like temperature, humidity, and dust. Ensure your product design takes these factors into account.
· IP Rating: If your product will be used outdoors or in harsh conditions, ensure that the UV LED assembly has an appropriate Ingress Protection (IP) rating to prevent dust, moisture, or other contaminants from affecting the LEDs.
· Operating Temperature: Ensure that your UV LEDs are operating within the manufacturer’s recommended temperature range to maintain efficiency and extend their lifespan.
10. Monitor and Maintain the UV LEDs
Finally, regular maintenance and monitoring are essential to keep UV LEDs operating at optimal efficiency throughout their lifespan.
· Cleaning: Clean UV LEDs and their optical components regularly to prevent dirt and dust buildup, which can reduce light output.
· Performance Monitoring: For high-end applications, incorporate performance monitoring systems to track the intensity and lifespan of the LEDs. This helps predict when maintenance or replacement is needed.
· Replacement Schedule: While UV LEDs have a long lifespan, they will eventually degrade over time. Plan for regular replacements or refurbishing to ensure consistent performance.
Conclusion
Installing UV LEDs for optimal efficiency in your product designs requires careful attention to various factors, including choosing the right LED type, managing heat dissipation, positioning the LEDs effectively, and ensuring safety. By following the steps outlined above—understanding your application, ensuring compatibility with the power supply, optimizing LED placement, and using appropriate optical elements—you can maximize the performance and longevity of your UV LEDs. With proper design, installation, and maintenance, UV LEDs can provide efficient, reliable, and sustainable lighting solutions for a wide range of applications.
